Middle-end (Analysis and IR)

The analysis package takes the syntax tree, and turns each function into a graph, with nodes that contain a simpler intermediate representation.

Control Flow

Control flow is resolved by converting the AST to a graph (see ASTGraphing.kt), where each node (a so-called Basic Block) represents a linear piece of code, with no jumps, conditional or otherwise. Basically, all ASTNode subclasses are removed by the conversion to a graph, except for Expression subclasses (with certain exceptions: TernaryConditional, in particular, is also removed).

Those linear pieces of code are represented as a List<Expression>, and are transformed to the simple IR (List<IRInstruction>) while creating the graph (see sequentialize and createInstructions).

While creating the graph, various variable declarations are encountered. These do not show up in the IR; instead, they are tracked in a separate data structure (see CFG.definitions). A “definition” is either a declaration in the C sense, or assignment to that variable.

Everything is stored in the CFG class.

JSON serialization

The CFG (including BasicBlocks, and the IR) are serializable to JSON, using the CLI options --cfg-mode --serialize.

Here’s a sample of a JSON BasicBlock:

{
  "isRoot": false,
  "phi": [],
  "ir": [
    {
      "discriminator": "slak.ckompiler.analysis.IntBinary",
      "result": {
        "discriminator": "slak.ckompiler.analysis.VirtualRegister",
        "registerId": 2,
        "type": "signed int"
      },
      "op": "SUB",
      "lhs": {
        "discriminator": "slak.ckompiler.analysis.Variable",
        "type": "signed int",
        "name": "second",
        "identityId": 2,
        "version": 1
      },
      "rhs": {
        "discriminator": "slak.ckompiler.analysis.IntConstant",
        "value": 22,
        "type": "signed int"
      }
    },
    {
      "discriminator": "slak.ckompiler.analysis.MoveInstr",
      "result": {
        "discriminator": "slak.ckompiler.analysis.Variable",
        "type": "signed int",
        "name": "second",
        "identityId": 2,
        "version": 2
      },
      "value": {
        "discriminator": "slak.ckompiler.analysis.VirtualRegister",
        "registerId": 2,
        "type": "signed int"
      }
    }
  ],
  "postOrderId": 9,
  "nodeId": 2,
  "predecessors": [0],
  "successors": [4],
  "terminator": {
    "discriminator": "slak.ckompiler.analysis.UncondJump",
    "target": 4
  }
}

Graphical representation for CFGs

The CFG can be viewed graphically, via Graphviz’s dot: the createGraphviz function can output the dot source for a graph. This functionality is available via the CLI option --cfg-mode, or via the Internals Explorer app in a browser.

For example, the following code

int main() {
  int x = 1;
  if (x > 22) {
    x += 2;
  } else {
    x += 3;
  }
  return x + 4;
}

produces the following graph

SSA Form

The CFG class is also responsible for converting the code in its nodes to a (pruned) SSA form. However, the process has a few prerequisites:

The CFG must be cleaned of certain artifacts created during AST graphing. In particular, empty blocks (blocks with no code, no condition and no return) are removed from the graph.

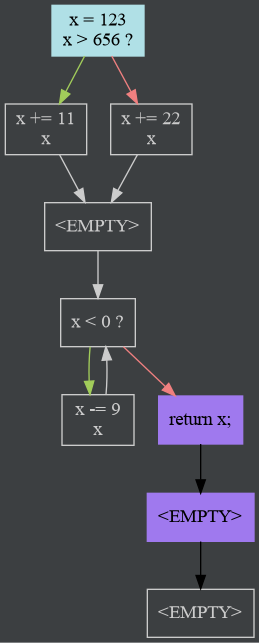

Here is an example of a CFG that has not been cleaned:

All the blocks labeled <EMPTY> are redundant.

The edges are collapsed such that the control flow the graph represents is unchanged. This is done in a loop until no more collapsing can be done; removing an empty block may also allow us to remove a previously un-removable block (this case is in the example above, with the two blocks that come after the return).

See collapseEmptyBlocks in ControlFlowGraph.kt, and BasicBlock.collapseEmptyPreds in BasicBlock.kt.
Dead code elimination is performed, by finding subgraphs disconnected from the start node. See filterReachable in ControlFlowGraph.kt.

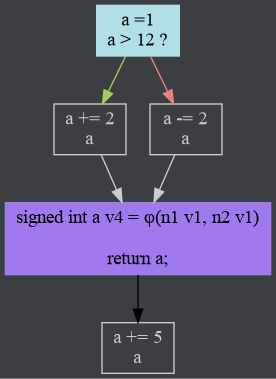

Note that in this case, impossible edges aren’t considered for connectivity. For example, a basic block that contains a function return has an impossible edge to another basic block, which contains the code after the return. Strictly speaking, the second block is connected. For DCE purposes, however, such blocks are considered disconnected. Such a graph looks like this:
Unterminated BasicBlock are identified. Warnings are reported for non-void functions (it means control flow reached the end of the function and didn’t find a return). The blocks are terminated with an ImpossibleJump.
We precompute a list of the CFG’s nodes in post-order (basically DFS, for the kinds of graphs encountered here). See postOrderNodes in ControlFlowGraph.kt.
An auxiliary data structure, DominatorList, is created. This list stores each node’s immediate dominator. The list is then used to compute every node’s dominance frontier, which is stored as a member of BasicBlock.

Once all these steps are complete, SSA conversion can begin. It works in 2 phases: φ-function insertion, and variable renaming.

The first phase is responsible for taking every single variable definition in the function, and creating PhiInstruction instances for every control flow intersection (this is what the dominance frontier is used for). This is a relatively uncomplicated process if dominance is precomputed. See insertPhiFunctions in ControlFlowGraph.kt.

The second phase does the bulk of the work: renaming every use and definition of every variable. A lot of state is tracked to enable this process (see the ReachingDefinition and VariableRenamer classes in ControlFlowGraph.kt). The “renaming” is done by simply annotating variables with a “version” property. “Newer” versions’ definitions are strictly dominated by “older” versions’ definitions.

Once this work is completed, the code is now in SSA form.

If the ControlFlowVariableRenames marker in log4j2.xml is enabled (it is denied logging by default), the variable renamer will print a table outlining the steps done during renaming for the variable x:

[TRACE] in ControlFlow: BB| x mention   | x.reachingDef
[TRACE] in ControlFlow: -------------------------------
[TRACE] in ControlFlow: 1 |     x0 φuse | ⊥ updated into ⊥
[TRACE] in ControlFlow: 1 | def x1      | ⊥ then x1
[TRACE] in ControlFlow: 1 |     x1 use  | x1 updated into ⊥
[TRACE] in ControlFlow: 3 | def x2      | x1 then x2
[TRACE] in ControlFlow: 3 |     x2 use  | x2 updated into x1
[TRACE] in ControlFlow: 9 |     x2 φuse | x2 updated into x1
[TRACE] in ControlFlow: 4 |     x1 use  | x2 updated into ⊥
[TRACE] in ControlFlow: 4 | def x3      | x1 then x3
[TRACE] in ControlFlow: 4 |     x3 use  | x3 updated into x1
[TRACE] in ControlFlow: 4 |     x3 use  | x3 updated into x1
[TRACE] in ControlFlow: 2 |     x3 φuse | x3 updated into x1
[TRACE] in ControlFlow: 9 |     x3 φuse | x3 updated into x1
[TRACE] in ControlFlow: 9 | def x4      | x3 then x4
[TRACE] in ControlFlow: 9 |     x4 use  | x4 updated into x3
[TRACE] in ControlFlow: 9 | def x5      | x4 then x5
[TRACE] in ControlFlow: 9 |     x5 use  | x5 updated into x4
[TRACE] in ControlFlow: 9 |     x5 use  | x5 updated into x4
[TRACE] in ControlFlow: 1 |     x5 φuse | x5 updated into x4
[TRACE] in ControlFlow: 2 |     x5 φuse | x5 updated into x4
[TRACE] in ControlFlow: 2 | def x6      | x5 then x6
[TRACE] in ControlFlow: 2 |     x6 use  | x6 updated into x5

(timestamps omitted for brevity)
